What Type of Signal IS a Square Wave? Unveiling Its True Nature
2. Delving into the Signal Type
Okay, so we've established what a square wave is. But to classify it more precisely, we need to understand what kind of signal it falls under. The keyword term here is that a square wave is a type of signal, specifically a periodic, non-sinusoidal signal. That's the core essence — the defining characteristic.

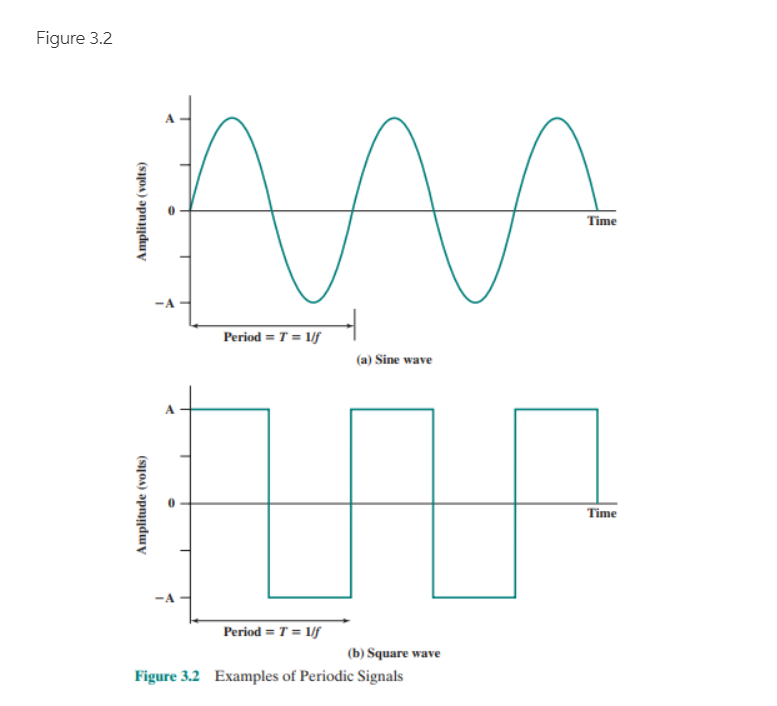

Let's break that down: "Periodic" means, as we mentioned before, the signal repeats itself over time. Imagine that tap dancer again — the footwork pattern continuously repeats. Now, "non-sinusoidal" is key. A sine wave is a smooth, flowing, undulating curve. Think of ocean waves gently rising and falling. A square wave, on the other hand, is anything but smooth. It's got those abrupt, sharp transitions that make it a distinctive square shape. So, its definitely not a sine wave. That instantly puts it into a different category of signals.
Think of signals like musical instruments. A flute produces a sound close to a sine wave: pure, clear, and resonant. A square wave, however, is more like a really simple organ stop, perhaps a Principal or Diapason. It has a fundamental pitch, but with lots of harmonic richness even if the sound is a bit harsher. So while the flutes tone is pure, the organs tone contains the fundamental frequency and a whole host of related frequencies that give it body and texture. This added complexity is also why square waves are good for testing electronic circuits.
Consider it this way: signals come in many flavors. Some are simple, some are complex, some are continuous, and some are discrete. Square waves fall into the complex, periodic, and often digital, categories, making them exceptionally versatile. They serve as building blocks, clock signals, and trigger mechanisms in countless applications. That's why understanding their nature is so crucial to mastering electronics.
