Decoding the Mystery

1. Understanding Voltage Levels in Power Systems

Ever seen those massive electricity pylons marching across the countryside and wondered about all the numbers associated with them? One common pairing you might spot is "132/33kV." But what exactly does that mean? Well, let's unravel this electrifying mystery together. Think of it as understanding the different gears in a car each voltage level serves a specific purpose in getting power from the generation plant to your toaster (or, you know, your sophisticated home entertainment system).

Essentially, 132/33kV refers to voltage levels in an electrical power transmission and distribution system. The "kV" stands for kilovolts, which is simply thousands of volts. So, 132kV is 132,000 volts, and 33kV is 33,000 volts. The slash (/) indicates a transformation. In most cases, it denotes a step-down transformer reducing the voltage from the higher value to the lower one. It's like a voltage translator, making sure the power is delivered at the right "volume" for different stages of the electrical grid.

Imagine a highway system. You have massive freeways (high-voltage transmission lines) carrying lots of traffic (electricity) long distances, and then smaller roads (distribution lines) branching off to serve individual towns and neighborhoods. The 132kV line is like the freeway — high-capacity and designed for efficiently moving large amounts of power over long distances. The 33kV line is like a smaller highway or major road leading into a city, taking power from the 'freeway' and getting it closer to the final consumers.

Why not just use one voltage level for everything? Because it's not efficient or safe. High voltages are great for long-distance transmission because they minimize losses (think of less friction on that electrical highway). But these high voltages are far too dangerous for direct use in our homes and businesses. That's why we need transformers to step down the voltage to safer, usable levels. So, the 132/33kV rating signifies a crucial part of the power distribution process.

Electrical Engineering 33 KV Line Complete Erection Work With Material

The Role of Transformers in Voltage Transformation

2. Stepping Down the Voltage

At the heart of the 132/33kV designation is the transformer. Transformers are static devices (meaning they have no moving parts) that use electromagnetic induction to change the voltage of alternating current (AC) electricity. They're like the unsung heroes of the power grid, quietly working behind the scenes to ensure we get the right amount of power where we need it. Think of them as the power grid's version of a language translator, converting high-voltage "electrical language" into a lower-voltage "electrical language" we can all understand (and use!).

The specific type of transformer used in a 132/33kV setup is typically a step-down transformer. This means it takes the higher 132kV voltage and reduces it to the lower 33kV voltage. This is achieved through the arrangement of coils within the transformer. The ratio of the number of turns in the primary coil (connected to the 132kV side) to the number of turns in the secondary coil (connected to the 33kV side) determines the voltage transformation ratio. For example, a transformer with a 4:1 turns ratio would step down the voltage by a factor of four.

These transformers are not just simple voltage converters; they're also designed to handle significant amounts of power. Theyre built to withstand extreme weather conditions and operate reliably for decades. They are often located in substations, which are like electrical hubs where voltage transformations and switching operations take place. Think of substations as the command centers of the local power grid, carefully managing the flow of electricity to ensure a stable and reliable supply.

Without these step-down transformers, we'd be trying to plug our devices into sockets carrying 132,000 volts! Which, needless to say, would not end well. So, the next time you flip a switch and the lights come on, give a silent thanks to the humble transformer — the silent guardian of our electrical safety and convenience.

132/33 KV DULLAVCHERRA GSS Assam Electricity Grid Corporation Ltd

Where are 132/33kV Systems Typically Found?

3. Regional Distribution and Industrial Applications

So, now we know what 132/33kV means, but where would you typically find such a voltage combination in action? The 132kV side is generally part of the regional transmission network. It's used to transport large quantities of power from power plants or major substations to various distribution points. Think of it as the backbone of the electricity supply, carrying the bulk of the load across a wider area. It's like the electrical equivalent of a major highway system connecting different cities.

The 33kV side then serves as a sub-transmission or primary distribution voltage. It's used to distribute power from the 132kV substation to smaller substations or large industrial customers. This voltage level is often found in rural areas or smaller towns where the demand isn't as high as in major cities, but still requires a substantial amount of power. It bridges the gap between the high-voltage transmission network and the lower-voltage distribution network that ultimately delivers power to homes and businesses.

You'll also often see 33kV used to supply large industrial facilities, such as factories, mines, and manufacturing plants. These facilities typically have a high power demand and require a dedicated supply at a higher voltage level than is generally available for residential or commercial customers. In these cases, the 33kV supply provides a reliable and efficient way to meet their energy needs. It's like having a dedicated power line directly feeding a thirsty industrial giant.

In essence, the 132/33kV system is a vital part of the electrical infrastructure, ensuring that power is delivered efficiently and safely to a wide range of consumers, from small villages to large industrial complexes. It is like an intermediate delivery service, using the power from the electrical 'highway' and delivering to the local area.

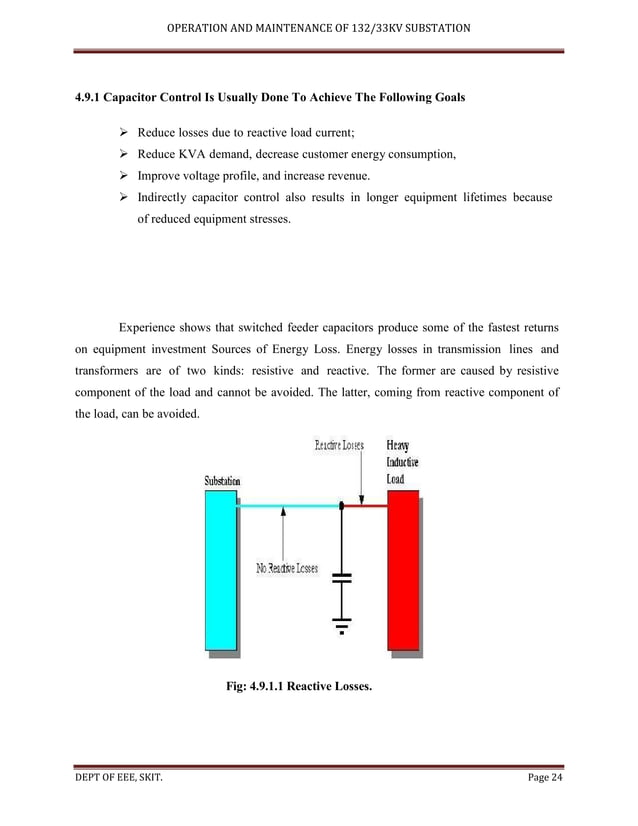

132 33kv Substation Documentation PDF

Why These Specific Voltage Levels? Is There a Reason?

4. Balancing Efficiency, Safety, and Cost

You might be wondering why 132kV and 33kV were chosen as specific voltage levels in the first place. Were they just pulled out of thin air? Well, there's actually a good reason behind these numbers. They represent a balance between several factors, including transmission efficiency, safety considerations, and cost-effectiveness. It's not like they picked random numbers out of a hat!

Higher voltages are generally more efficient for transmitting power over long distances because they reduce losses due to resistance in the transmission lines. However, higher voltages also require more expensive equipment, such as larger insulators and more robust transformers. The selection of 132kV for regional transmission represents a sweet spot where transmission losses are reasonably low without incurring excessive costs for equipment. Think of it as finding the optimal gear in a bicycle to minimize effort and maximize speed.

The 33kV level is also a compromise between efficiency and safety. It is high enough to efficiently distribute power over a moderate distance, but low enough to be reasonably safe for use in urban and industrial environments with appropriate safety measures. Lower voltage require a stronger current to deliver the same amount of power, and that also translates into higher power loss during transmission. Also, increasing the current also increases the physical size of the conductors, which in turn increases the cost of the whole project.

Furthermore, these voltage levels have become standardized over time, which allows for interoperability and economies of scale in the manufacturing of electrical equipment. Standardisation also enables easier maintenance and repair of the electrical grid, reducing the need for highly specialised components. So, the choice of 132kV and 33kV is not arbitrary, but a result of careful engineering and long-term industry practices.

132/33 Kv Substation Overview YouTube

The Future of Voltage Levels and Grid Modernization

5. Smart Grids and Evolving Technologies

The power grid is constantly evolving, and the voltage levels used in transmission and distribution systems are also subject to change as new technologies emerge and the demand for electricity continues to grow. The rise of renewable energy sources, such as solar and wind power, is also influencing the way we design and operate our grids. These renewable sources are frequently connected to the grid at different voltage levels, and we may need to adapt the grid to accommodate them. Think of it like adding new lanes and ramps to a highway to handle increased traffic flow.

Smart grid technologies, such as advanced metering infrastructure (AMI) and real-time monitoring systems, are also playing a role in modernizing the power grid. These technologies allow us to monitor and control the flow of electricity more precisely, enabling us to optimize the use of existing infrastructure and improve the reliability and efficiency of the grid. They are like the GPS and traffic management systems of the power grid, helping us to navigate and control the flow of electricity in a smarter way.

As we move towards a more decentralized and renewable-based energy system, we may see the emergence of new voltage levels and grid architectures. For example, microgrids, which are small-scale, self-sufficient energy systems, may operate at different voltage levels than the main grid. These microgrids can provide local power generation and storage, reducing the reliance on the central grid and improving the resilience of the overall energy system. Imagine a network of smaller, independent power islands that can operate on their own or connect to the main grid as needed.

The 132/33kV system has been the pillar of power distribution and transmission network, especially on the regional level. It's likely to stay relevant for a long time. However, as the energy landscape continues to change, we can expect to see new innovations and technologies that will further optimize the way we deliver power to homes and businesses.

132kv 33kv Installation And Bay Extension Of 132Kv/33kv Substation

FAQ

6. Your Burning Questions Answered

Still got some questions buzzing around your head about 132/33kV? Let's tackle a few common ones:

Q: Is 132/33kV dangerous?

A: Absolutely! Both 132kV and 33kV are extremely dangerous voltages. They are lethal and should only be handled by trained professionals with the proper safety equipment and procedures. Stay well clear of any equipment marked with these voltages!

Q: Can I use electricity directly from a 33kV line in my home?

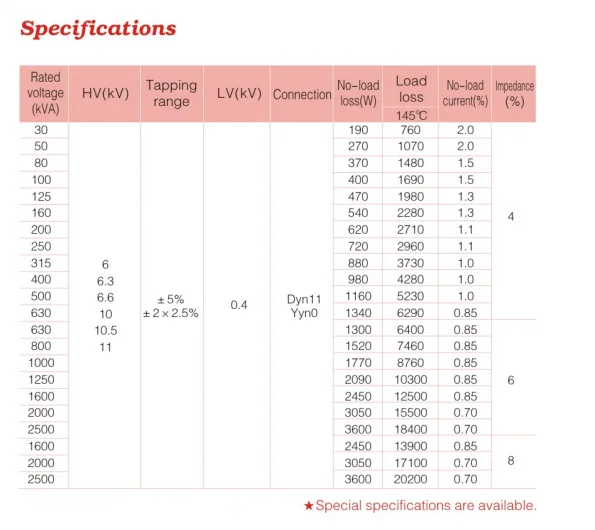

A: No, absolutely not! You can't directly use 33kV electricity in your home. It's much too high! It needs to be further stepped down to lower, safer voltages (like 230V or 120V, depending on your location) by distribution transformers before it can be used in homes or businesses. Plugging anything directly into a 33kV supply would be catastrophic (and likely fatal!).

Q: What happens if a 132/33kV transformer fails?

A: If a 132/33kV transformer fails, it can cause a power outage in the area it serves. Power companies have backup systems and procedures in place to restore power as quickly as possible. These might include switching to alternative transformers or using mobile substations. The severity of the outage depends on the importance of the transformer and the configuration of the surrounding grid.
